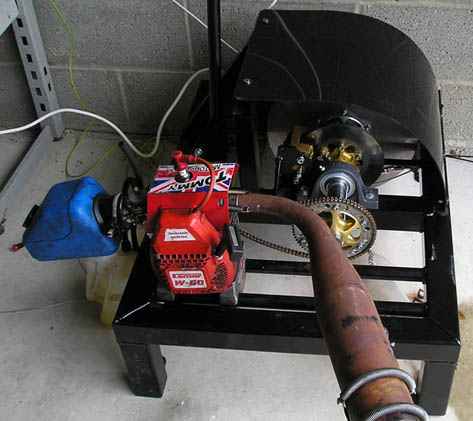

KartDyno-1 Engine kart dyno


UK distributor's version
contact: info@sportdevices.co.uk



Includes:

  • SP1 Electronic module
  • Fly wheel : diameter- 355 mm / inertia 1.2 kg*m2
  • 294 mm Air cooled disc brake
  • Starter with battery (12V/65Ah)

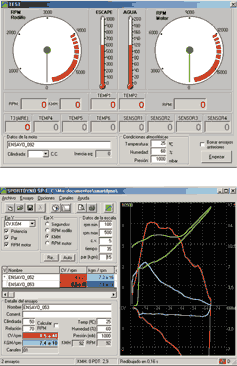

    Software SmartPower Version 2.8:



    SPECIFICATIONS
    Analog channels 1 Termocouple type K upto 1000C
    Digital channels 1 Flywheel speed
    1 Engine RPM

    Max horsepower 50 HP
    Weight 150 Kg
    Size 65 x 85 x 45 cm
    Air Disk Brake 297 mm
    Starter 12 v
    Battery 65 AH

    Last Modified: OCT/14/06
